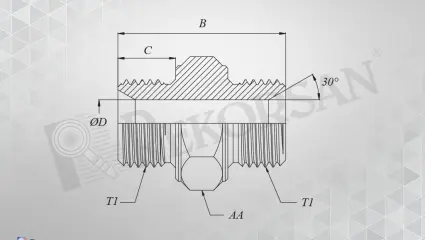

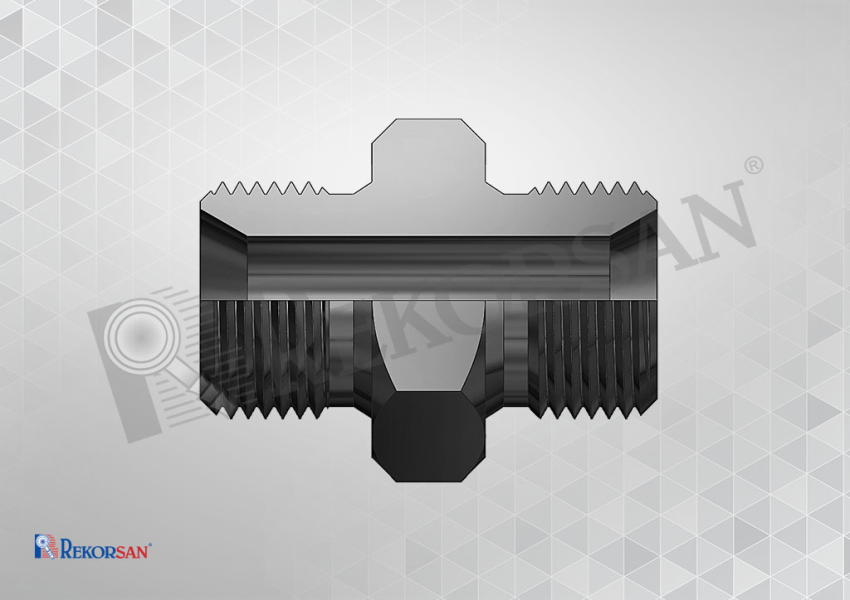

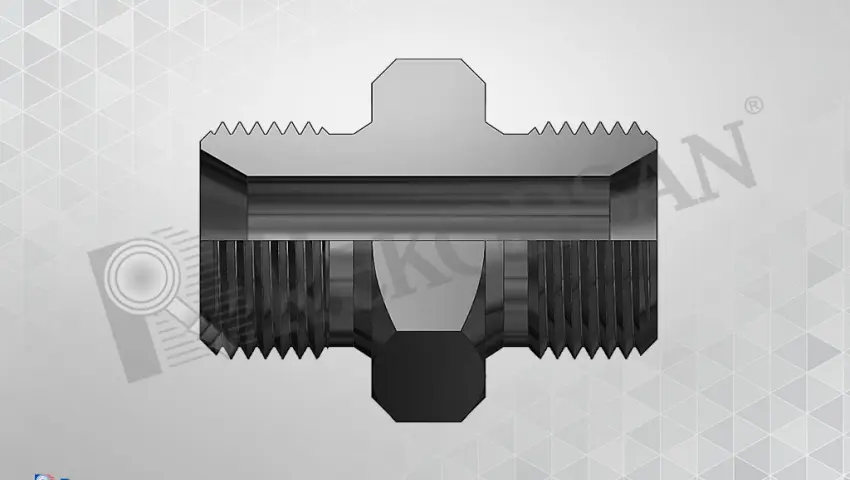

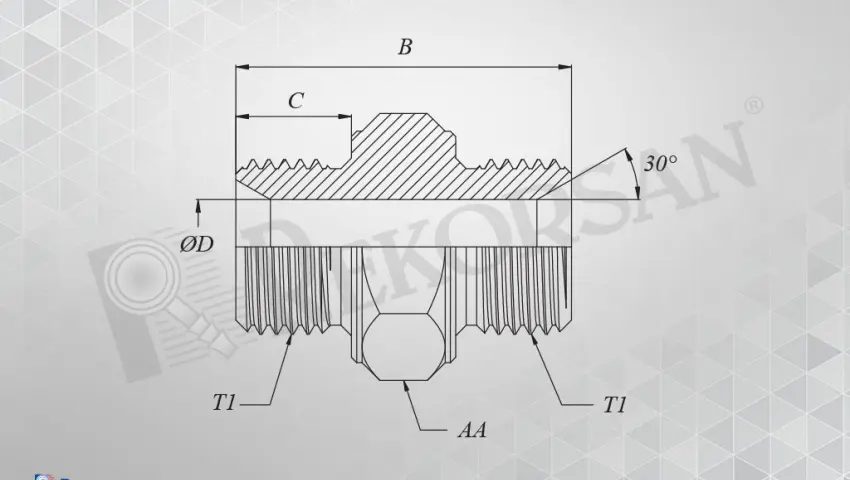

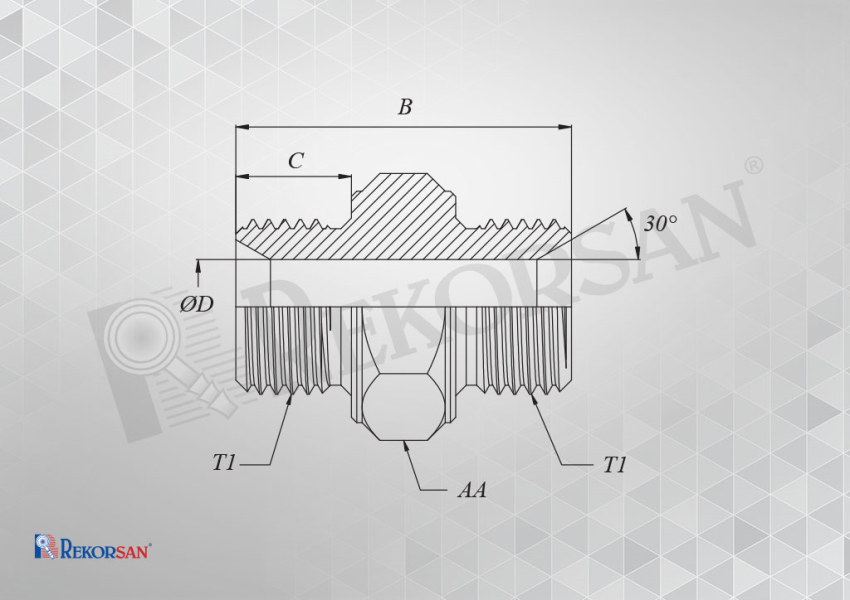

| BSP ARA NİPELİ BSP STRAIGHT UNION CONNECTOR |
||||||
| MALZEME KODU MATERIAL CODE |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
B | C | ØD | AA |
| RK-1010-RRN | R1/8-28 | R1/8-28 | 24.5 | 9 | 4 | 14 |
| RK-1313-RRN | R1/4-19 | R1/4-19 | 30.5 | 11 | 6 | 19 |
| RK-1717-RRN | R3/8-19 | R3/8-19 | 33.5 | 12 | 9 | 22 |
| RK-2121-RRN | R1/2-14 | R1/2-14 | 39 | 14 | 12 | 27 |
| RK-2323-RRN | R5/8-14 | R5/8-14 | 43.5 | 16 | 14 | 30 |
| RK-2626-RRN | R3/4-14 | R3/4-14 | 44 | 16 | 16 | 32 |
| RK-3333-RRN | R1"-11 | R1"-11 | 50.5 | 18.5 | 20 | 41 |
| RK-4242-RRN | R1"1/4-11 | R1"1/4-11 | 59.5 | 22 | 28 | 50 |
| RK-4848-RRN | R1"1/2-11 | R1"1/2-11 | 61 | 22 | 32 | 55 |
| RK-6060-RRN | R2"-11 | R2"-11 | 66.5 | 24 | 45 | 70 |
| RK-7575-RRN | R2"1/2-11 | R2"1/2-11 | 70 | 24 | 56 | 81 |
| RK-8888-RRN | R3"-11 | R3"-11 | 70 | 24 | 68 | 91 |
