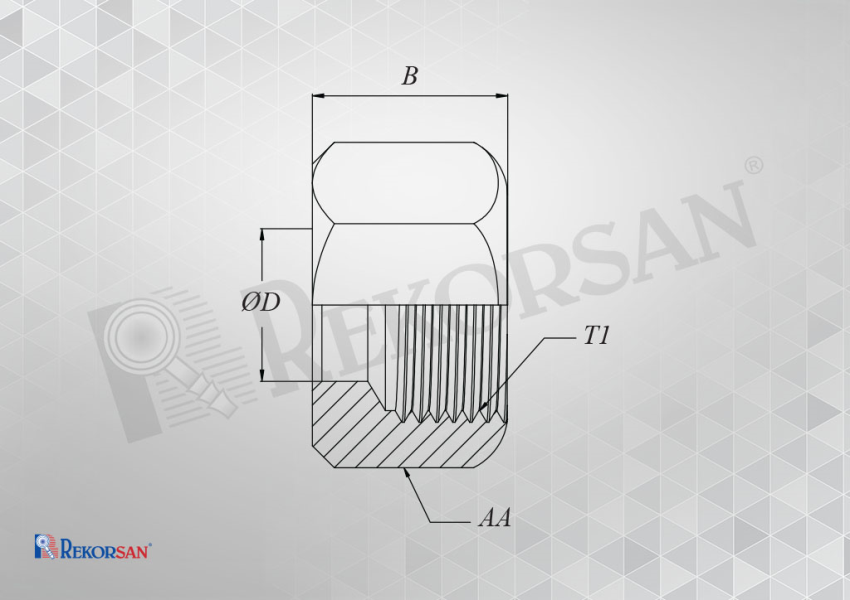

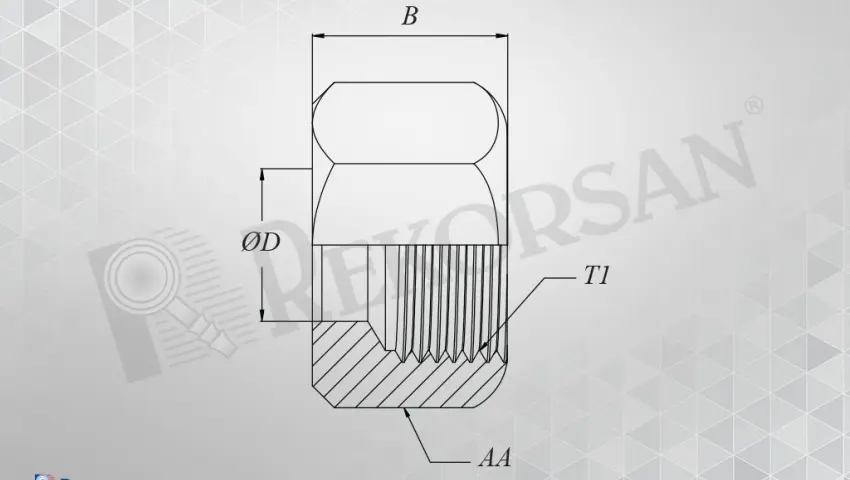

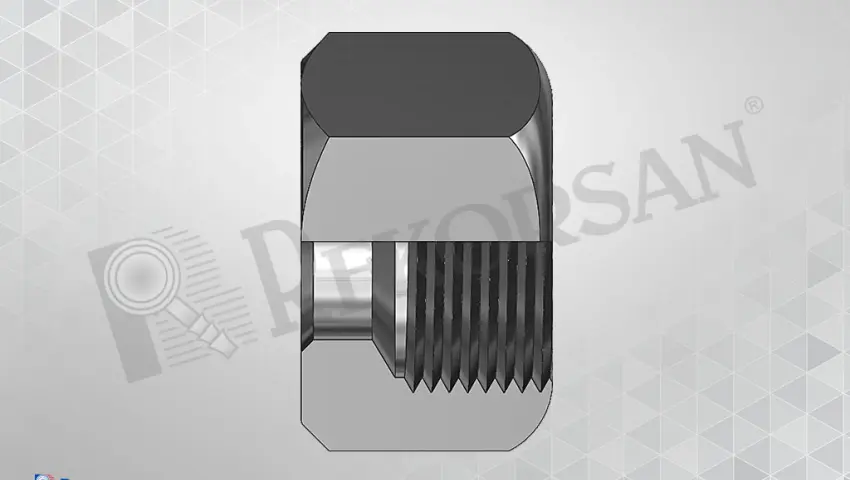

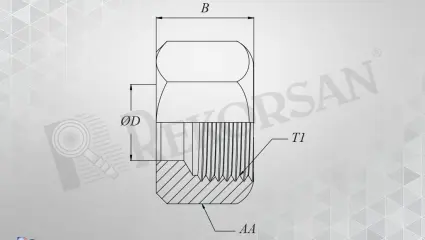

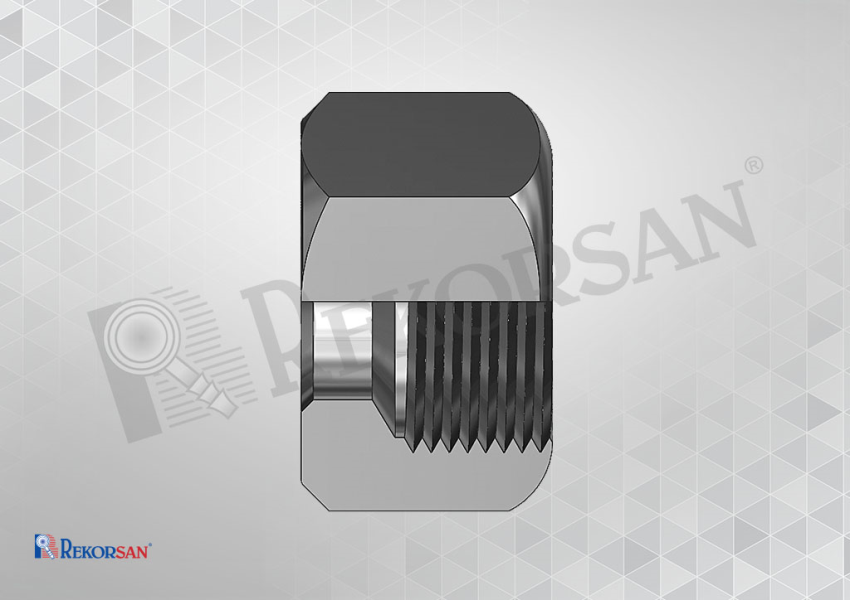

| METRİK BORU SOMUNU METRIC TUBE NUT |
||||
| MALZEME KODU MATERIAL CODE |
SOMUN ÖLÇÜSÜ NUT SIZE T1 |
BORU ÇAPI TUBE OD ØD |
B | AA |
| L TİPİ / L TYPE | ||||
| RK-0106-BS-LL | M10x1 6LL | 6 | 12 | 12 |
| RK-0108-BS-LL | M12x1 8LL | 8 | 12.5 | 14 |
| RK-0106-BS-L | M12x1,5 6L | 6 | 15 | 14 |
| RK-0108-BS-L | M14x1,5 8L | 8 | 15 | 17 |
| RK-0110-BS-L | M16x1,5 10L | 10 | 16 | 19 |
| RK-0112-BS-L | M18x1,5 12L | 12 | 16 | 22 |
| RK-0115-BS-L | M22x1,5 15L | 15 | 17.5 | 27 |
| RK-0118-BS-L | M26x1,5 18L | 18 | 18.5 | 32 |
| RK-0122-BS-L | M30x2 22L | 22 | 20.5 | 36 |
| RK-0128-BS-L | M36x2 28L | 28 | 21 | 41 |
| RK-0135-BS-L | M45x2 35L | 35 | 24 | 50 |
| RK-0142-BS-L | M52x2 42L | 42 | 25.5 | 60 |
| S TİPİ / S TYPE | ||||
| RK-0206-BS-S | M14x1,5 6S | 6 | 17 | 17 |
| RK-0208-BS-S | M16x1,5 8S | 8 | 17 | 19 |
| RK-0210-BS-S | M18x1,5 10S | 10 | 18 | 22 |
| RK-0212-BS-S | M20x1,5 12S | 12 | 18.5 | 24 |
| RK-0214-BS-S | M22x1,5 14S | 14 | 21 | 27 |
| RK-0216-BS-S | M24x1,5 16S | 16 | 21 | 30 |
| RK-0220-BS-S | M30x2 20S | 20 | 24.5 | 36 |
| RK-0225-BS-S | M36x2 25S | 25 | 27 | 46 |
| RK-0230-BS-S | M42x2 30S | 30 | 29 | 50 |
| RK-0238-BS-S | M52x2 38S | 38 | 32.5 | 60 |
