ÜRÜN DETAY

METRİK KOR REKORLAR

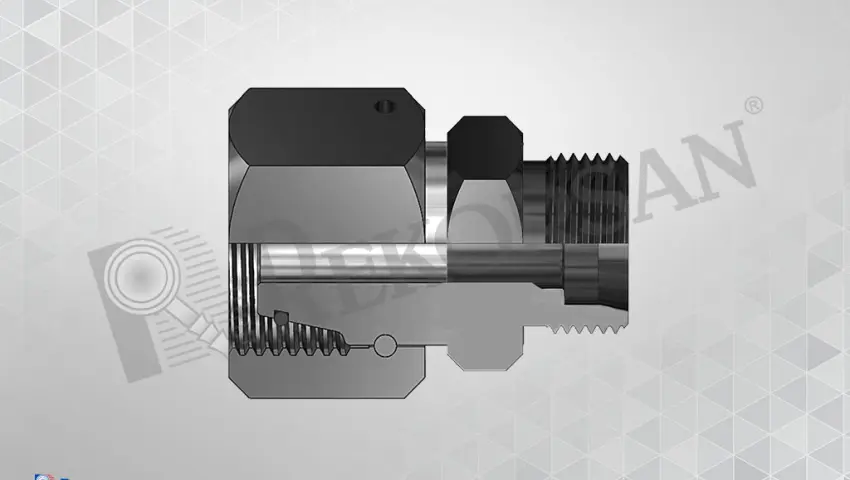

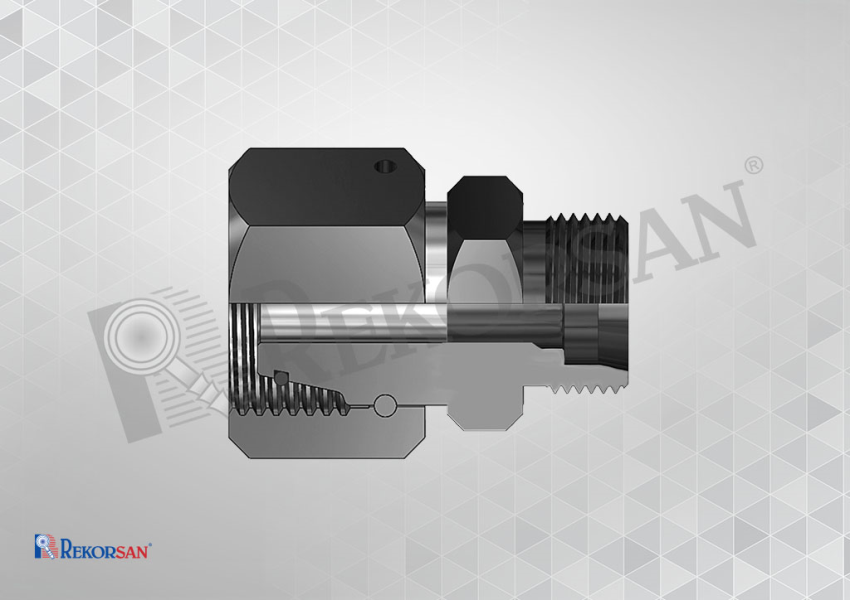

METRIC REDUCING SWIVEL STRAIGHT ADAPTER WITH O-RING
MALZEME KODU
MATERIAL CODE
DİŞ ÖLÇÜSÜ
THREAD SIZE
T1
DİŞ ÖLÇÜSÜ
THREAD SIZE
T2

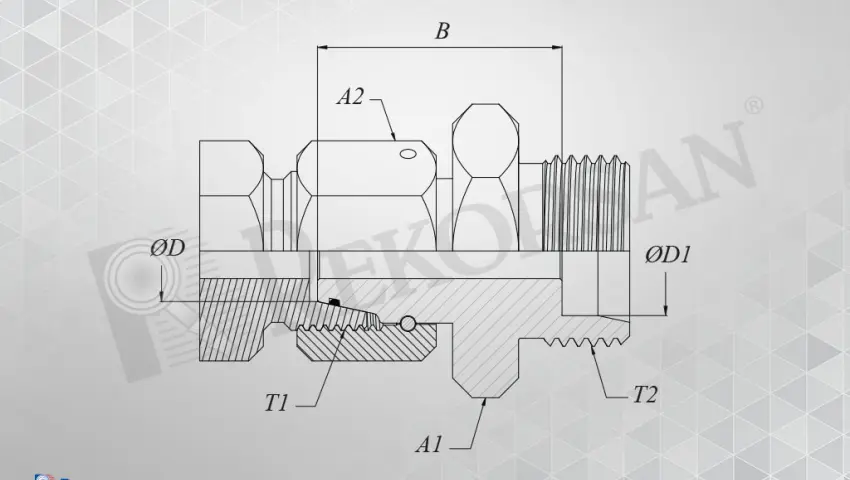

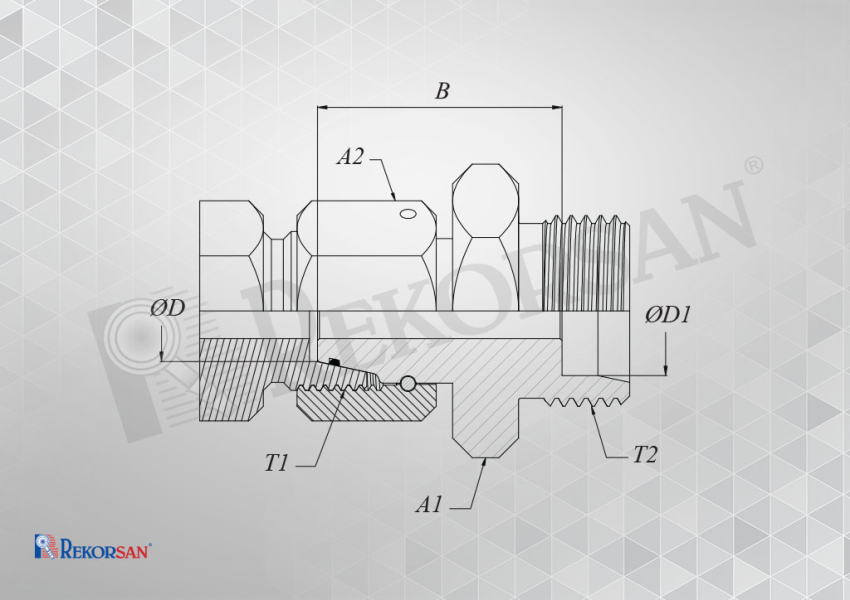

D D1 B A1 A2
L TİPİ / L TYPE
RK-0806-MMTR-L M14x1,5      8L M12x1,5      6L 8 6 22,5 12 17
RK-1006-MMTR-L M16x1,5    10L M12x1,5      6L 10 6 24 14 19
RK-1008-MMTR-L M16x1,5    10L M14x1,5      8L 10 8 24 14 19
RK-1206-MMTR-L M18x1,5    12L M12x1,5      6L 12 6 25 17 22
RK-1208-MMTR-L M18x1,5    12L M14x1,5      8L 12 8 25 17 22
RK-1210-MMTR-L M18x1,5    12L M16x1,5    10L 12 10 26 17 22
RK-1512-MMTR-L M22x1,5    15L M18x1,5    12L 15 12 28 22 27
RK-1812-MMTR-L M26x1,5    18L M18x1,5    12L 18 12 29,5 24 32
RK-2215-MMTR-L M30x2       22L M22x1,5    15L 22 15 34,5 27 36
RK-2218-MMTR-L M30x2       22L M26x1,5    18L 22 18 34,5 27 36
RK-2812-MMTR-L M36x2       28L M18x1,5    12L 28 12 34,5 36 41
RK-2815-MMTR-L M36x2       28L M22x1,5    15L 28 15 35,5 36 41
RK-2818-MMTR-L M36x2       28L M26x1,5    18L 28 18 35 36 41
RK-2822-MMTR-L M36x2       28L M30x2       22L 28 22 37,5 36 41
RK-3522-MMTR-L M45x2       35L M30x2       22L 35 22 41,5 46 50
RK-3528-MMTR-L M45x2       35L M36x2       28L 35 28 41,5 46 50
RK-4228-MMTR-L M52x2       42L M36x2       28L 42 28 41,5 50 60
RK-4235-MMTR-L M52x2       42L M45x2       35L 42 35 41 50 60
S TİPİ / S TYPE
RK-1612-MMTR-S M24x1,5      16S M20x1,5      12S 16 12 30,5 22 30
RK-2012-MMTR-S M30x2         20S M20x1,5      12S 20 12 34,5 27 36
RK-2016-MMTR-S M30x2         20S M24x1,5      16S 20 16 35,5 27 36
RK-2512-MMTR-S M36x2         25S M20x1,5      12S 25 12 35 36 46
RK-2516-MMTR-S M36x2         25S M24x1,5      16S 25 16 36 36 46
RK-2520-MMTR-S M36x2         25S M30x2         20S 25 20 36 36 46
RK-3016-MMTR-S M42x2         30S M24x1,5      16S 30 16 39,5 41 50
RK-3020-MMTR-S M42x2         30S M30x2         20S 30 20 39,5 41 50
RK-3025-MMTR-S M42x2         30S M36x2         25S 30 25 40 41 50
RK-3816-MMTR-S M52x2         38S M24x1,5      16S 38 16 43,5 50 60
RK-3820-MMTR-S M52x2         38S M30x2         20S 38 20 43,5 50 60
RK-3825-MMTR-S M52x2         38S M36x2         25S 38 25 44 50 60
RK-3830-MMTR-S M52x2         38S M42x2         30S 38 30 44,5 50 60
