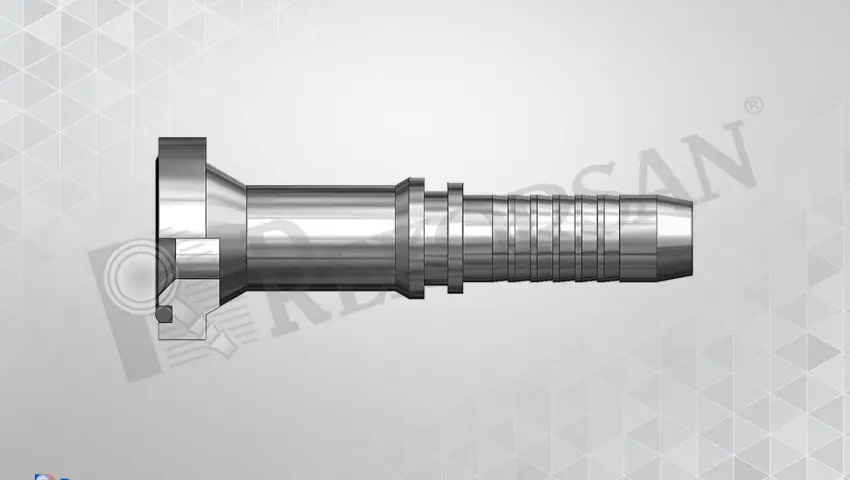

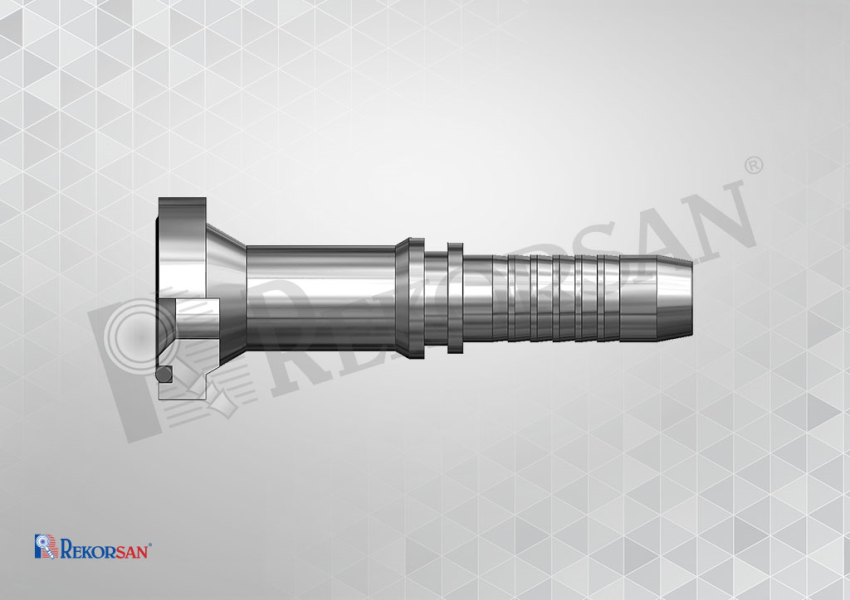

| FLANŞLI DÜZ HORTUM RAKORU 6000 SERİSİ (KALIN TİP) STRAIGHT ELBOW FLANGE HOSE FITTING (THICK TYPE) |
|||||||
| MALZEME KODU MATERIAL CODE |
HORTUM ÖLÇÜSÜ HOSE SIZE |
FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD |

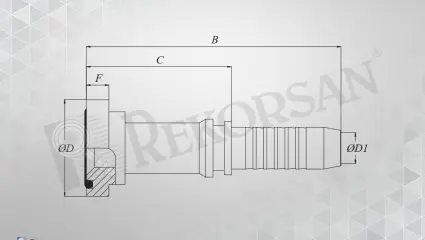

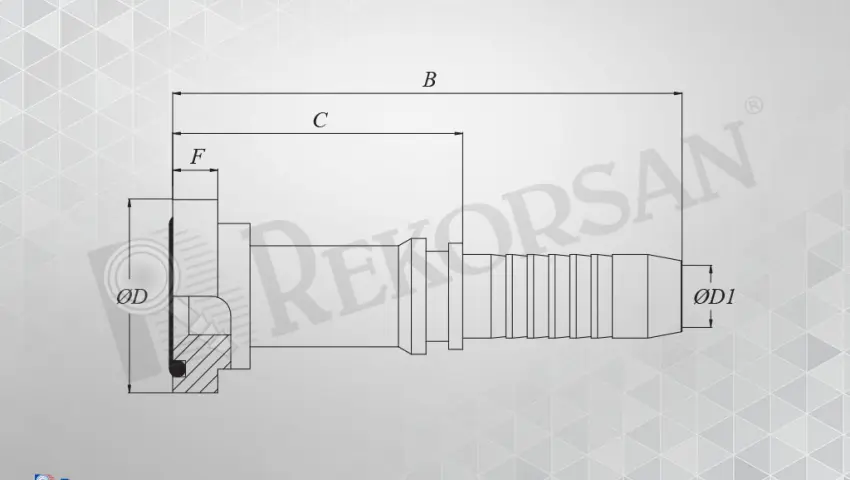

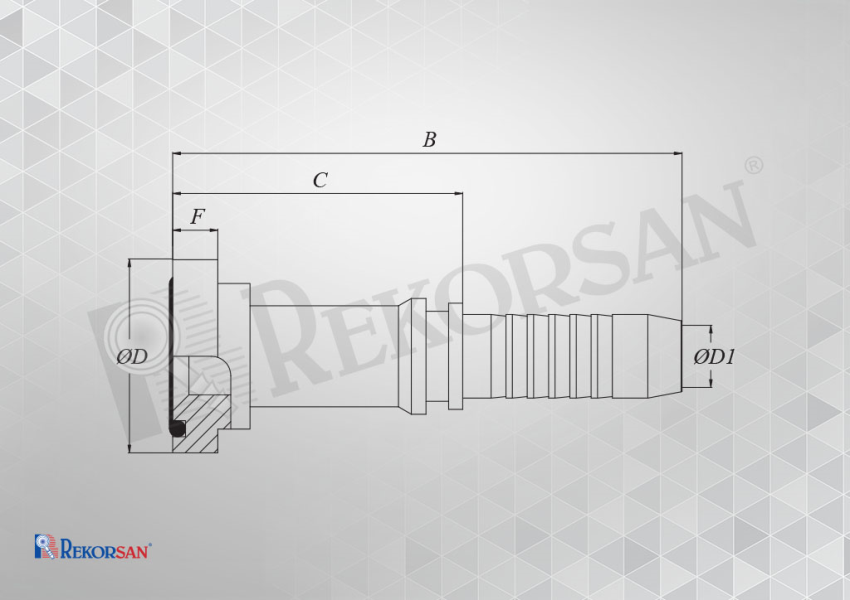

B | C | F | ØD1 | |
| mm | inch | ||||||
| RK-194110-KFLD | 19 | 3/4 | 41,3 | 106 | 62 | 14.5 | 14 |
| RK-254814-KFLD | 25 | 1" | 47,6 | 120 | 66 | 14.5 | 19 |
| RK-255414-KFLD | 25 | 1" | 54 | 120 | 66 | 14.5 | 19 |
| RK-324814-KFLD | 32 | 1"1/4 | 47,6 | 131 | 71.5 | 14.5 | 25 |
| RK-325414-KFLD | 32 | 1"1/4 | 54 | 131 | 71.5 | 14.5 | 25 |
| RK-326314-KFLD | 32 | 1"1/4 | 63,5 | 135 | 75.5 | 14.5 | 25 |
| RK-386314-KFLD | 38 | 1"1/2 | 63,5 | 150 | 78 | 14.5 | 29 |
