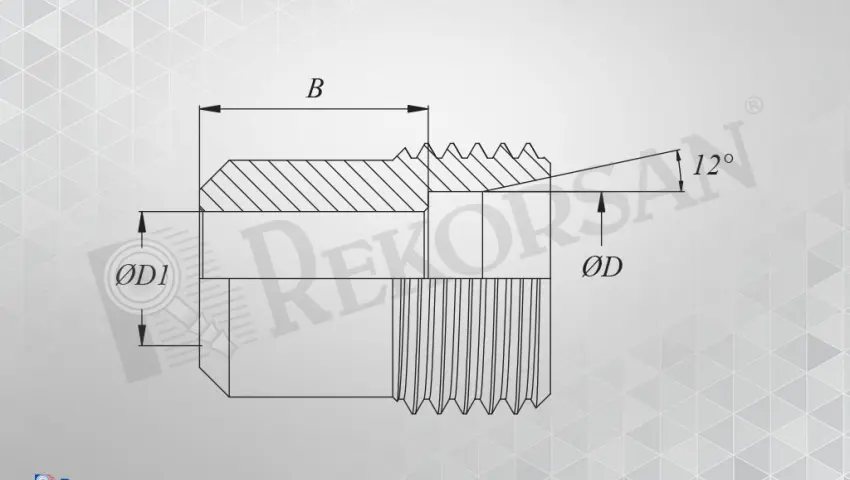

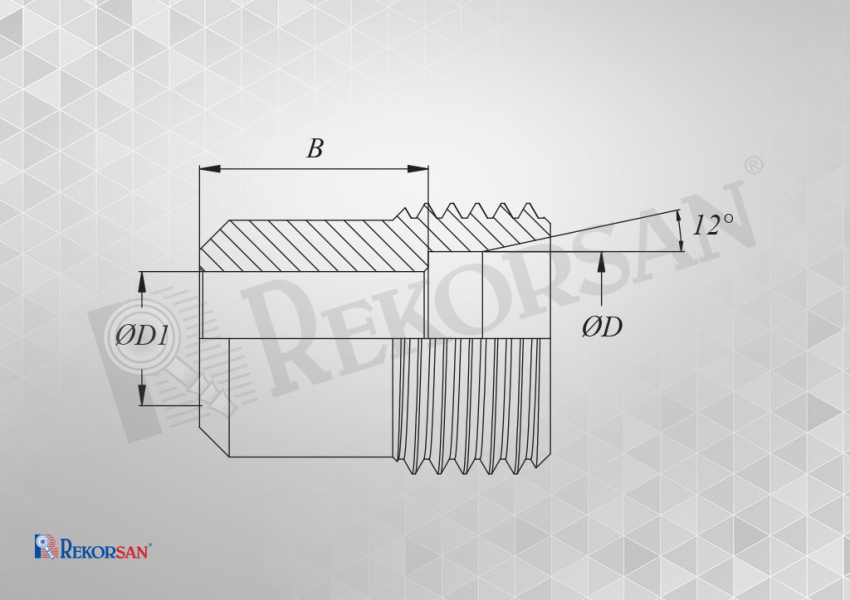

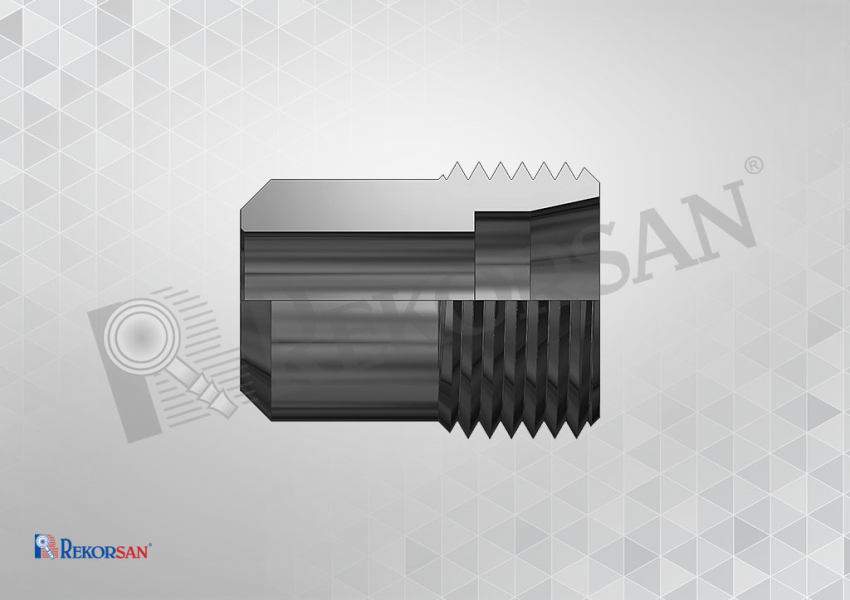

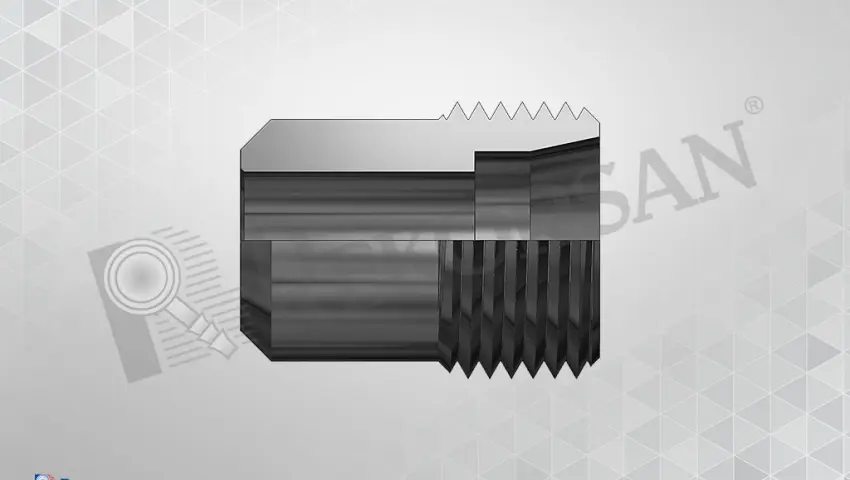

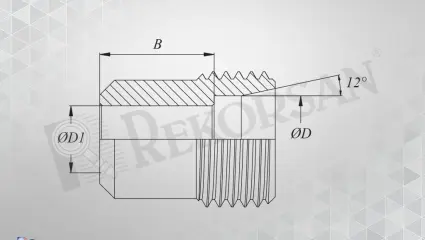

| METRİK KAYNAKLIK NİPELİ METRIC MALE THREAD WELDING NIPPLE |
||||
| MALZEME KODU MATERIAL CODE |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
B | ØD | ØD1 |
| L TİPİ / L TYPE | ||||
| RK-1206-MKN-L | M12x1,5 6L | 10 | 6 | 4 |
| RK-1408-MKN-L | M14x1,5 8L | 11.5 | 8 | 6 |
| RK-1610-MKN-L | M16x1,5 10L | 13.5 | 10 | 8 |
| RK-1812-MKN-L | M18x1,5 12L | 18 | 12 | 10 |
| RK-2215-MKN-L | M22x1,5 15L | 21 | 15 | 12 |
| RK-2618-MKN-L | M26x1,5 18L | 20.5 | 18 | 15 |
| RK-3022-MKN-L | M30x2 22L | 21.5 | 22 | 19 |
| RK-3628-MKN-L | M36x2 28L | 25 | 28 | 24 |
| RK-4535-MKN-L | M45x2 35L | 29.5 | 35 | 30 |
| RK-5242-MKN-L | M52x2 42L | 28 | 42 | 36 |
| S TİPİ / S TYPE | ||||
| RK-2012-MKN-S | M20x1,5 12S | 18.5 | 12 | 8 |
| RK-2416-MKN-S | M24x1,5 16S | 19.5 | 16 | 12 |
| RK-3020-MKN-S | M30x2 20S | 21.5 | 20 | 16 |
| RK-3625-MKN-S | M36x2 25S | 24.5 | 25 | 20 |
| RK-4230-MKN-S | M42x2 30S | 26.5 | 30 | 25 |
| RK-5238-MKN-S | M52x2 38S | 29 | 38 | 32 |
