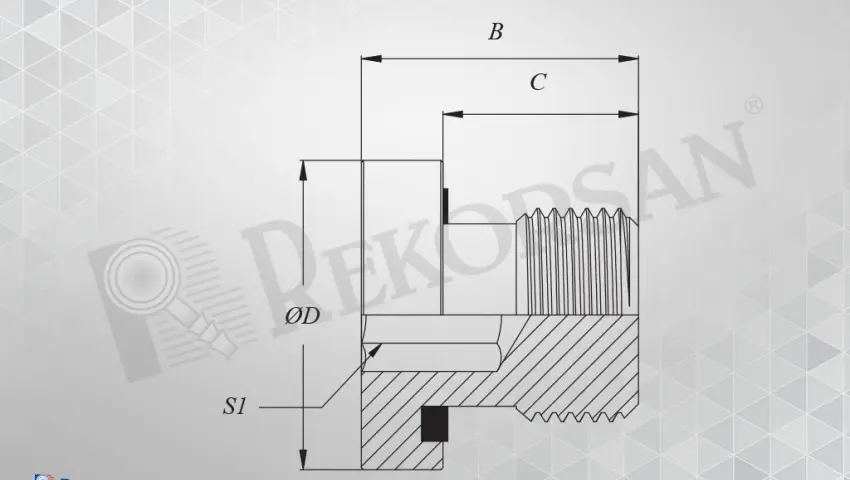

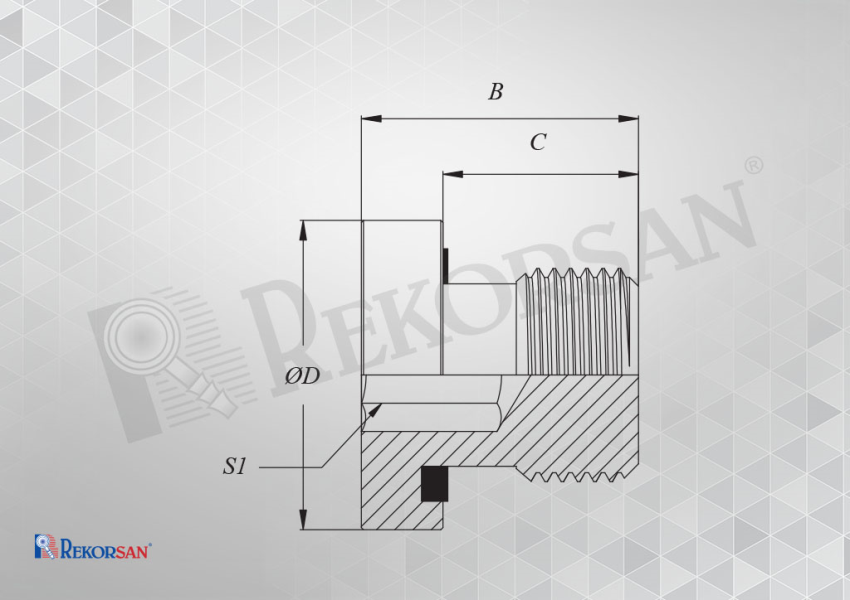

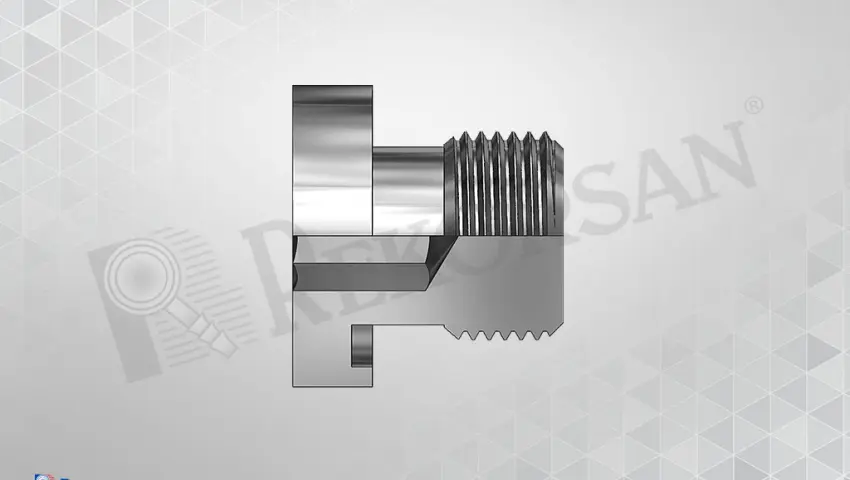

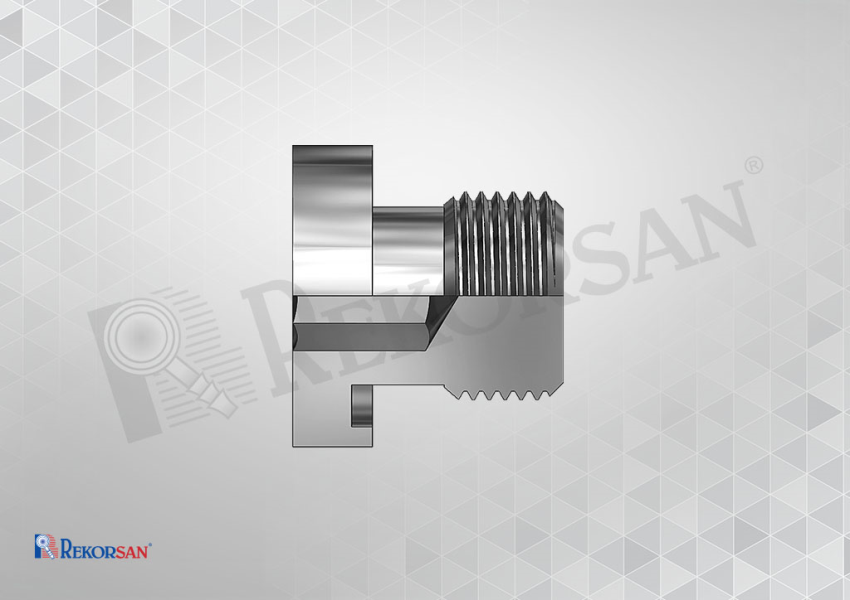

| METRİK PFX ALYANBAŞLI KÖRTAPA MALE METRIC THREAD WITH ELASTOMERIC SEAL (IN. HEX) |
|||||
| MALZEME KODU MATERIAL CODE |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |
B | C | ØD | S1 |
| RK-1010-MAT | M10x1 | 12.3 | 8 | 14 | 5 |
| RK-1215-MAT | M12x1,5 | 17.3 | 12 | 17 | 6 |
| RK-1415-MAT | M14x1,5 | 17.3 | 12 | 19 | 6 |
| RK-1615-MAT | M16x1,5 | 17.3 | 12 | 22 | 8 |
| RK-1815-MAT | M18x1,5 | 17.3 | 12 | 24 | 8 |
| RK-2015-MAT | M20x1,5 | 19.3 | 14 | 26 | 10 |
| RK-2215-MAT | M22x1,5 | 19.3 | 14 | 27 | 10 |
| RK-2615-MAT | M26x1,5 | 21.3 | 16 | 32 | 12 |
