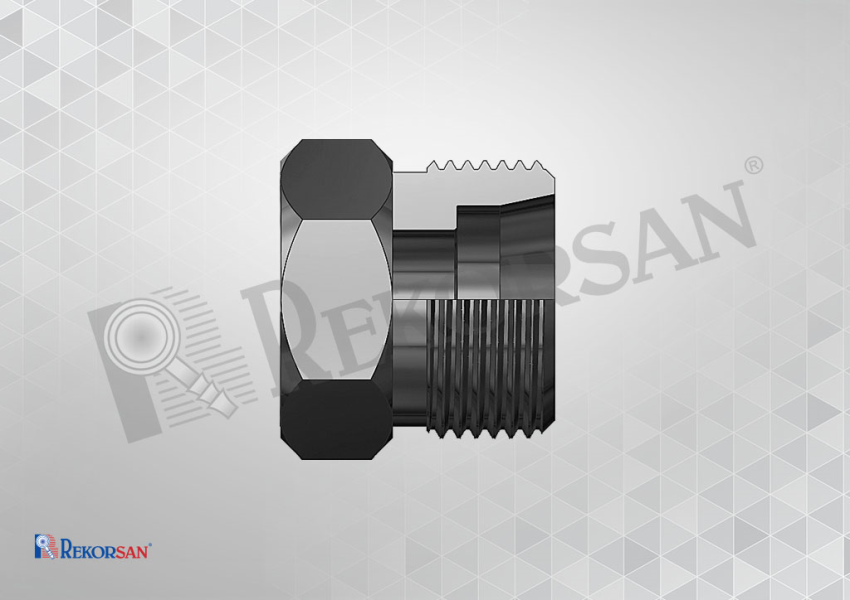

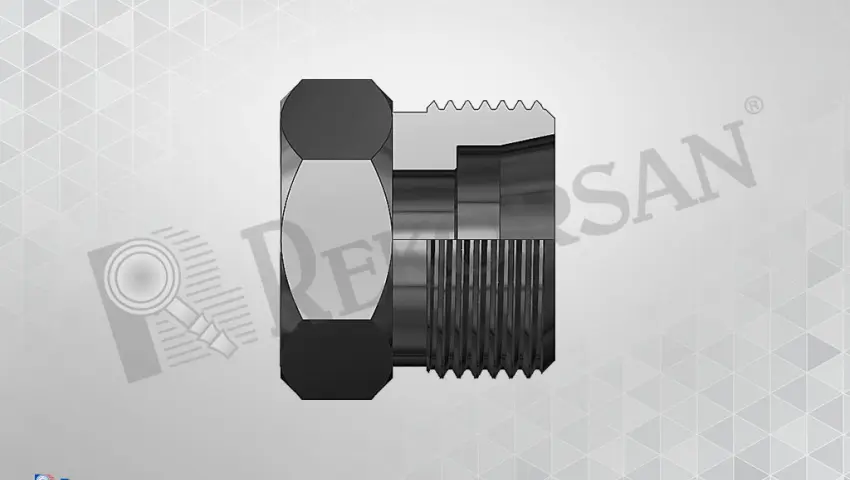

| METRİK ERKEK TAPA METRIC BLANKING PLUG FOR TUBE ENDS |
||||
| MALZEME KODU MATERIAL CODE |
DİŞ ÖLÇÜSÜ THREAD SIZE T1 |

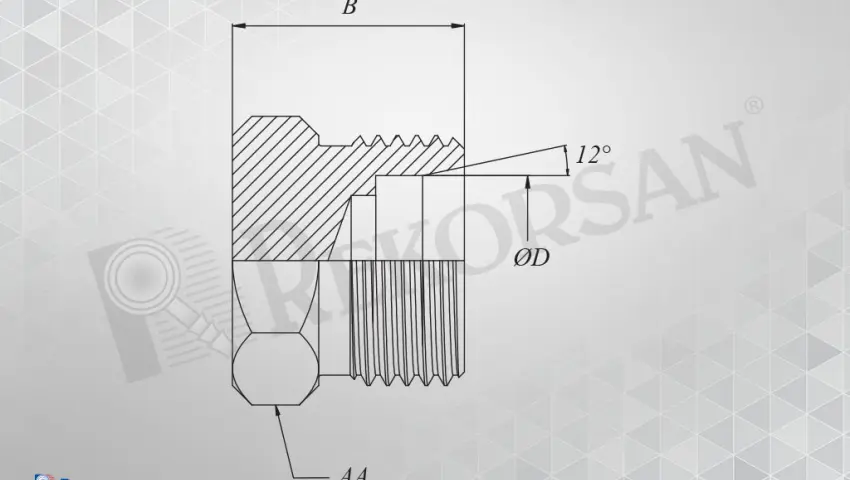

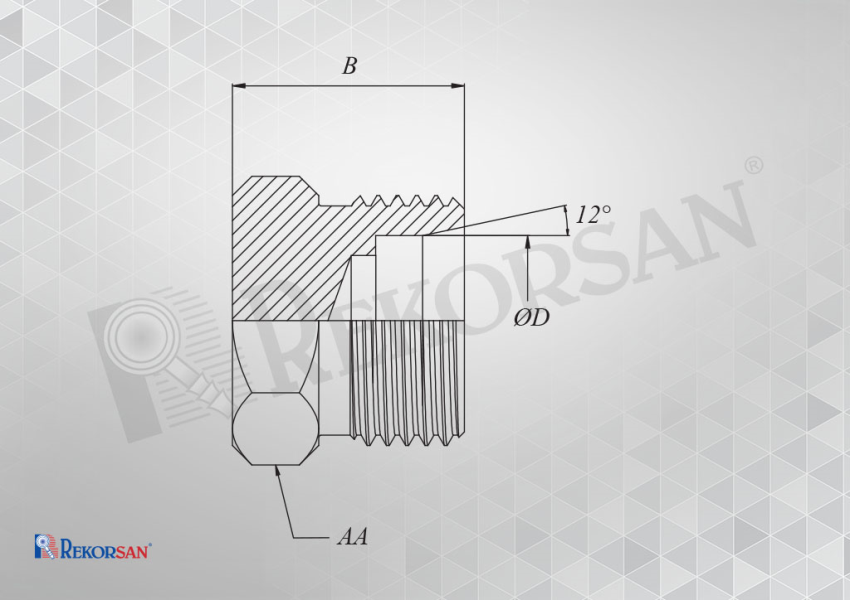

B | ØD | AA |
| L TİPİ / L TYPE | ||||
| RK-1206-MET-L | M12x1,5 6L | 14 | 6 | 12 |
| RK-1408-MET-L | M14x1,5 8L | 15 | 8 | 14 |
| RK-1610-MET-L | M16x1,5 10L | 16 | 10 | 17 |
| RK-1812-MET-L | M18x1,5 12L | 17 | 12 | 19 |
| RK-2215-MET-L | M22x1,5 15L | 18 | 15 | 24 |
| RK-2618-MET-L | M26x1,5 18L | 19 | 18 | 27 |
| RK-3022-MET-L | M30x2 22L | 21 | 22 | 32 |
| RK-3628-MET-L | M36x2 28L | 22 | 28 | 41 |
| RK-4535-MET-L | M45x2 35L | 25 | 35 | 46 |
| RK-5242-MET-L | M52x2 42L | 27 | 42 | 55 |
| S TİPİ / S TYPE | ||||
| RK-2012-MET-S | M20x1,5 12S | 22 | 12 | 22 |
| RK-2416-MET-S | M24x1,5 16S | 24 | 16 | 27 |
| RK-3020-MET-S | M30x2 20S | 28 | 20 | 32 |
| RK-3625-MET-S | M36x2 25S | 32 | 25 | 41 |
| RK-4230-MET-S | M42x2 30S | 34 | 30 | 46 |
| RK-5238-MET-S | M52x2 38S | 39 | 38 | 55 |
